Bob Watkin's drawings of the South Beam Base of the Brunel Swivel Bridge

Inspection and measurement of the edge beams showing rivets, bolts, plates and corrosion

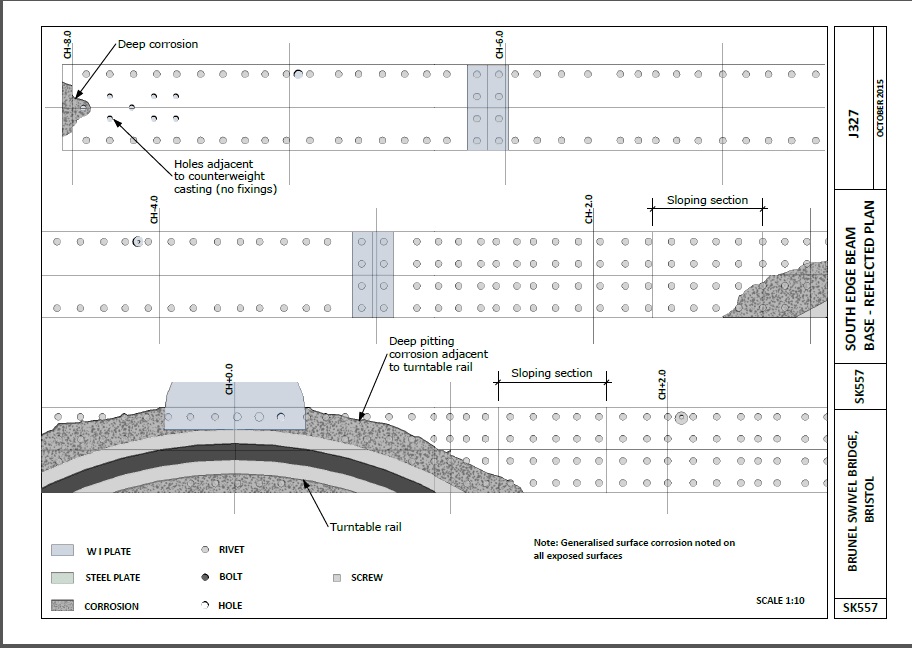

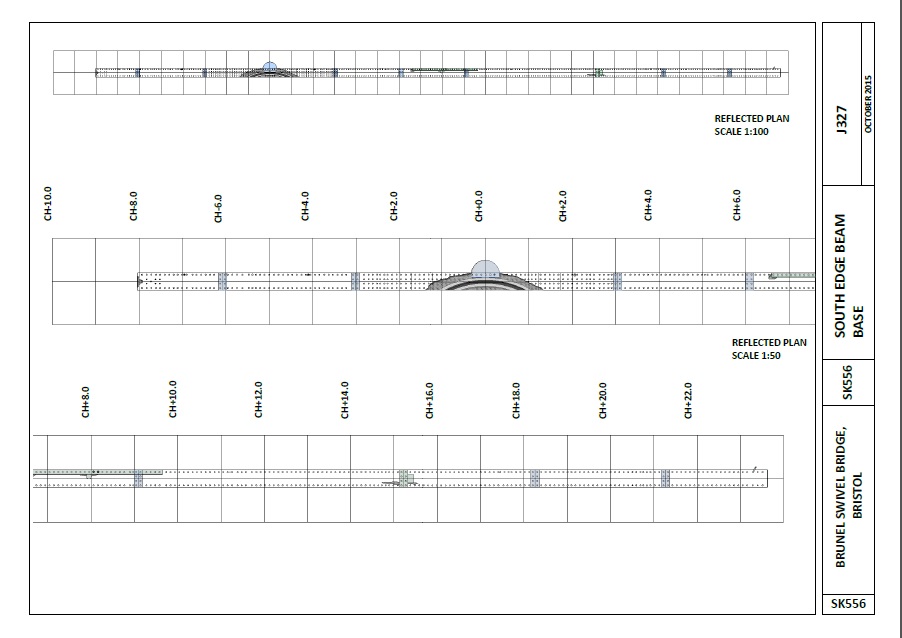

Base 1:100, 1:50	Reflected base plan 1:10

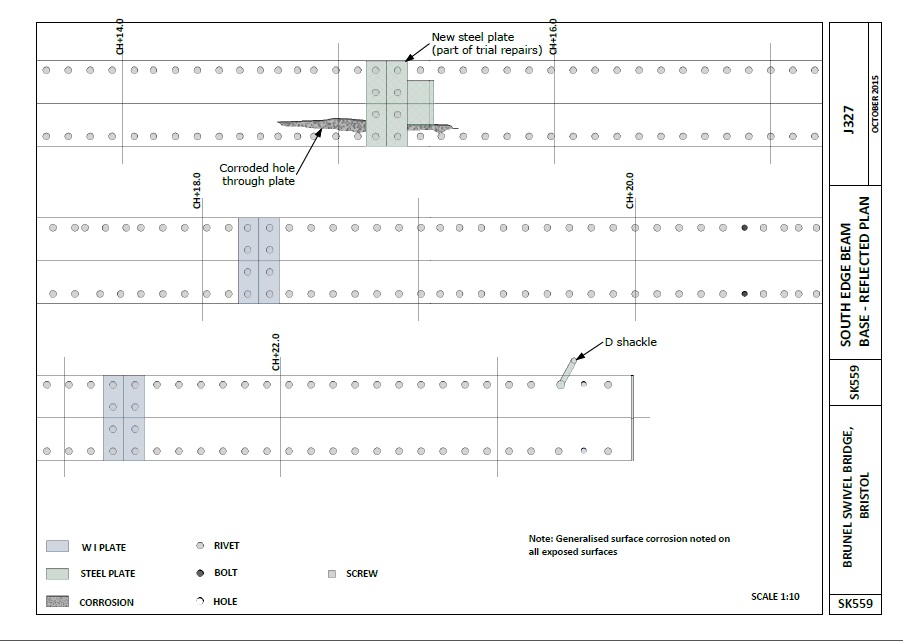

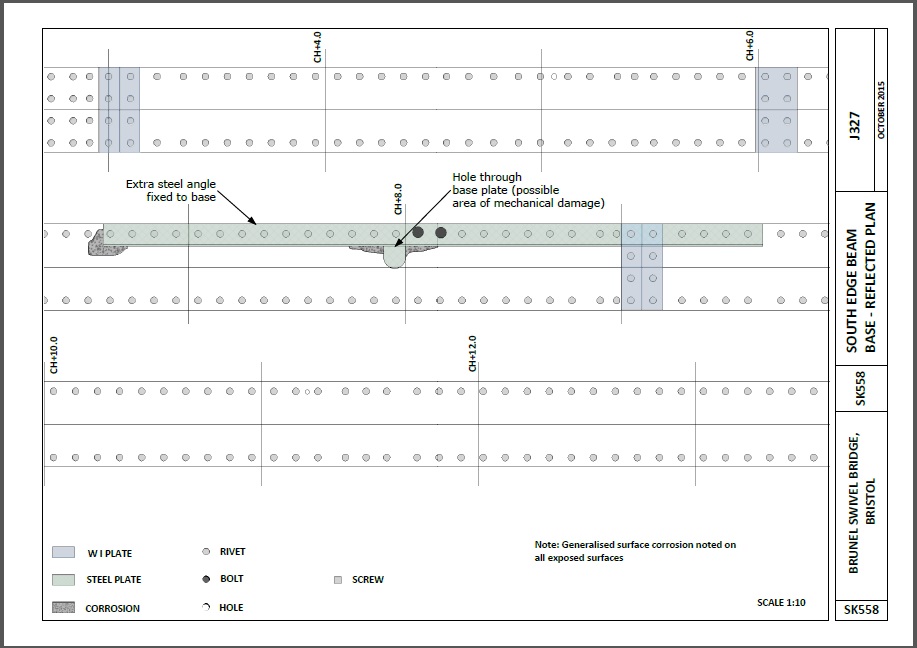

Reflected base plan 1:10	Reflected base plan 1:10

19 base surface inspection photos Updated 22 October 2015

---
