Brunel's Other BridgeBob Watkin's drawings of the inside edge of North Beam of the Brunel Swivel Bridge

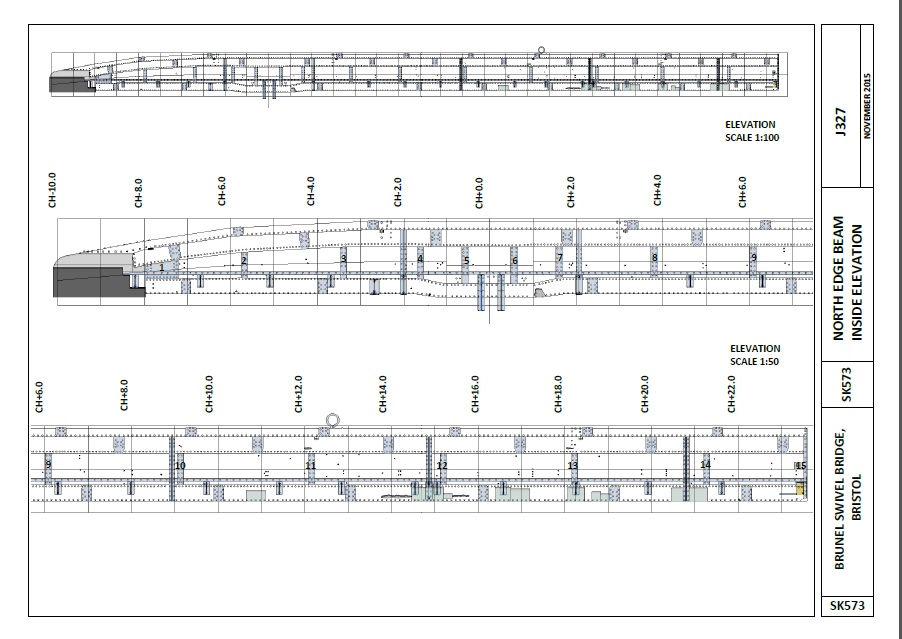

Inspection and measurement of the North edge beams SK573-585 elevation 1:100, 1:50 |

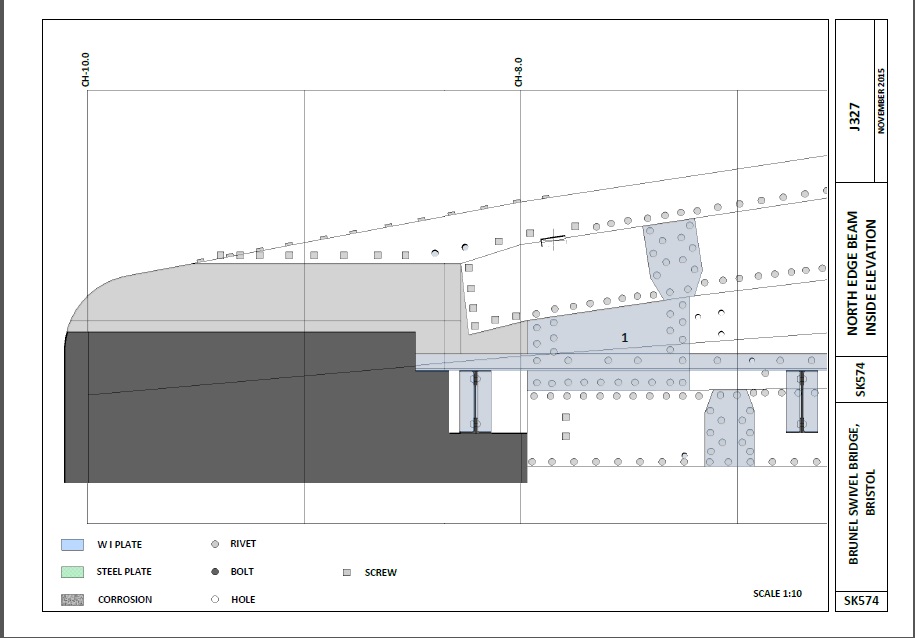

 section 1 |

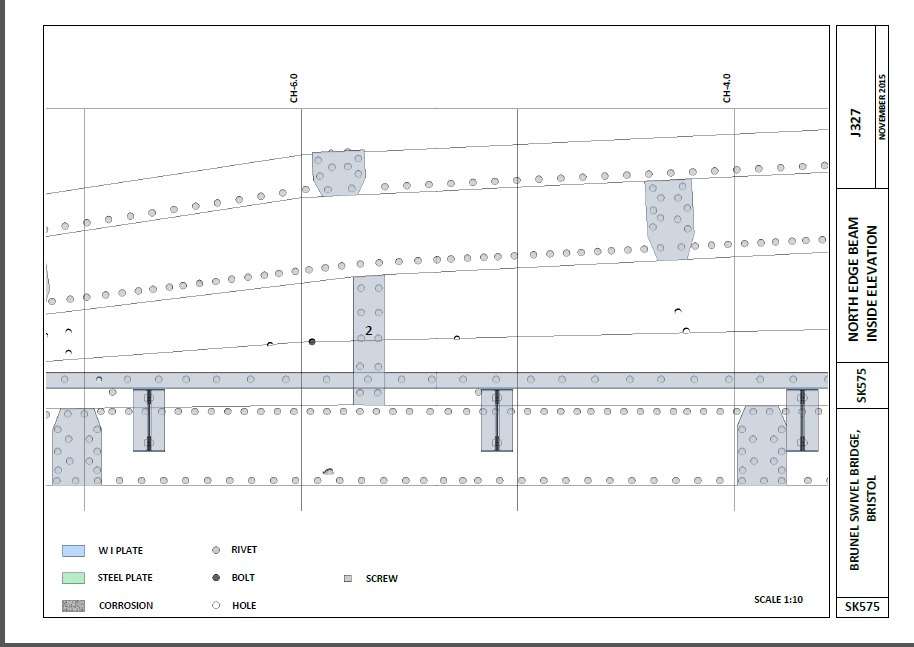

 section 2 |
 section 3 and 4 |

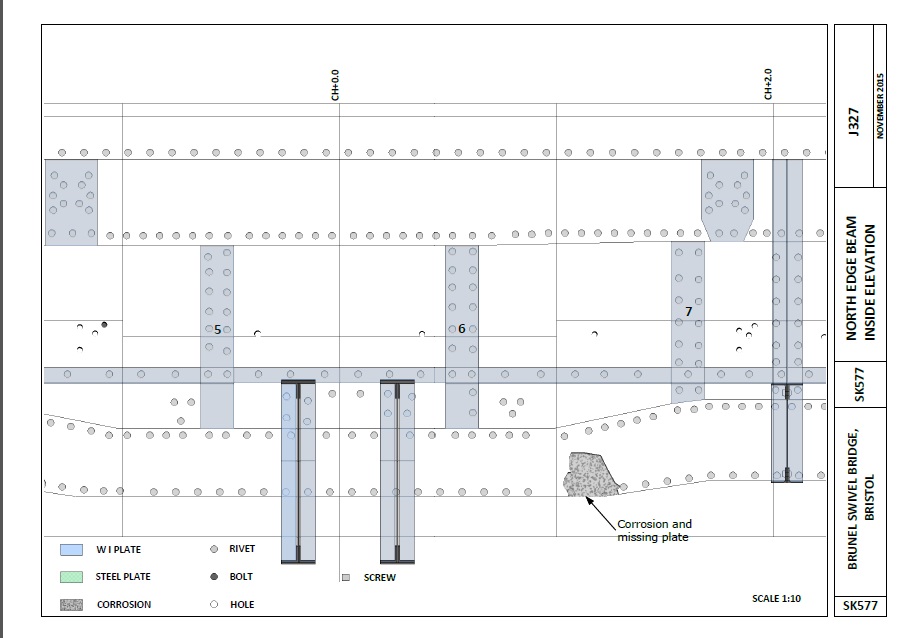

 section 5 to 7 |

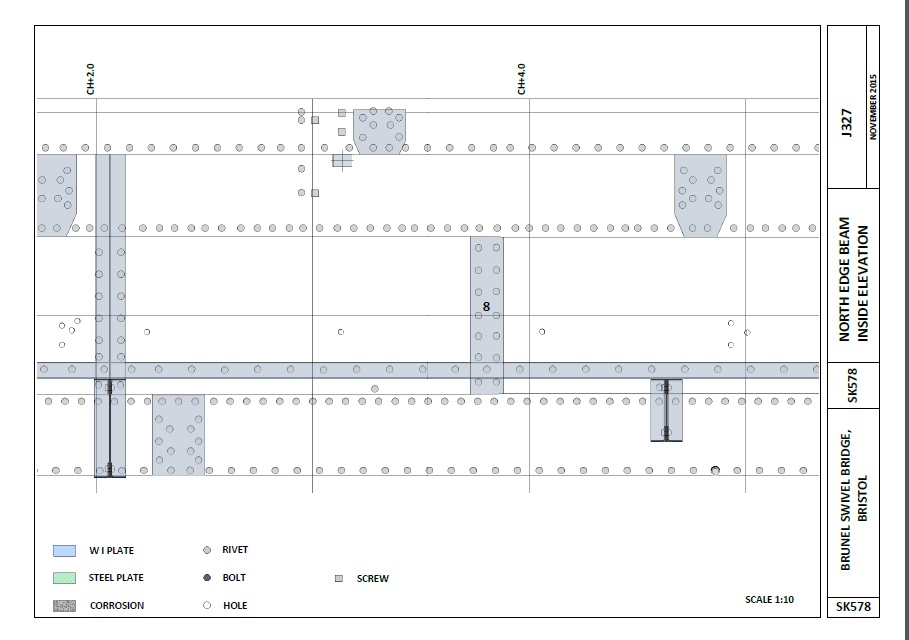

 section 8 |
 section 9 |

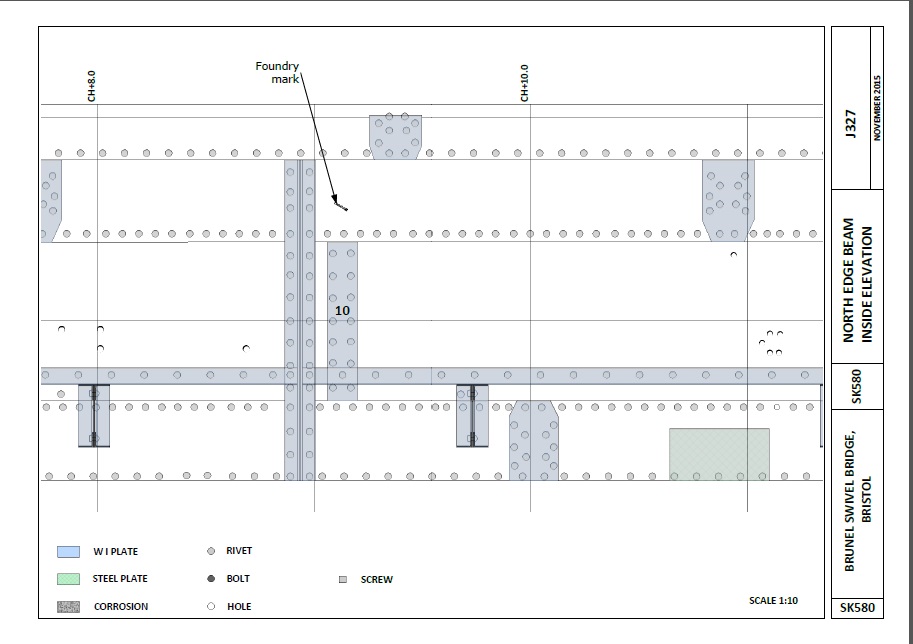

 section 10 |

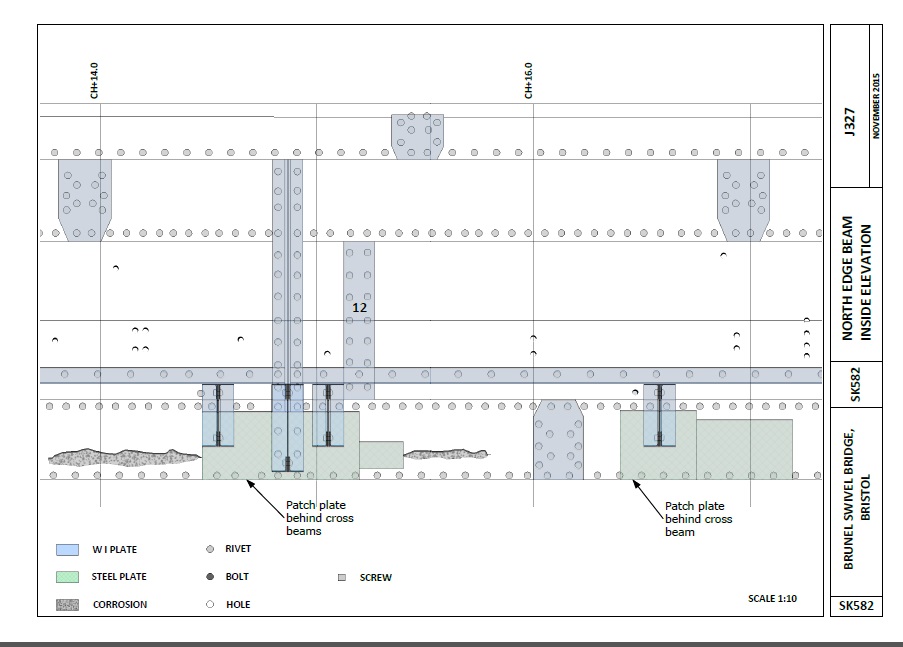

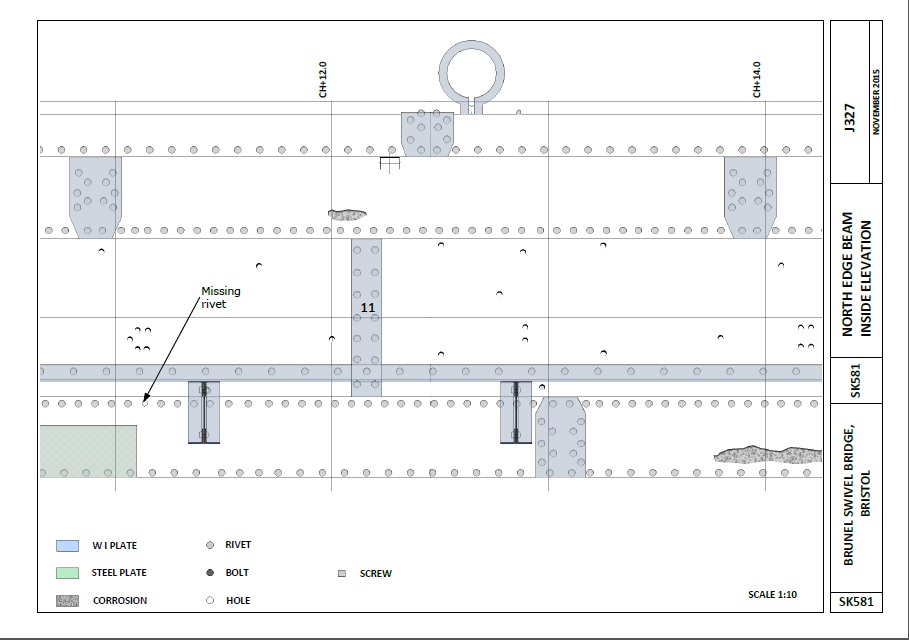

 section 11 |

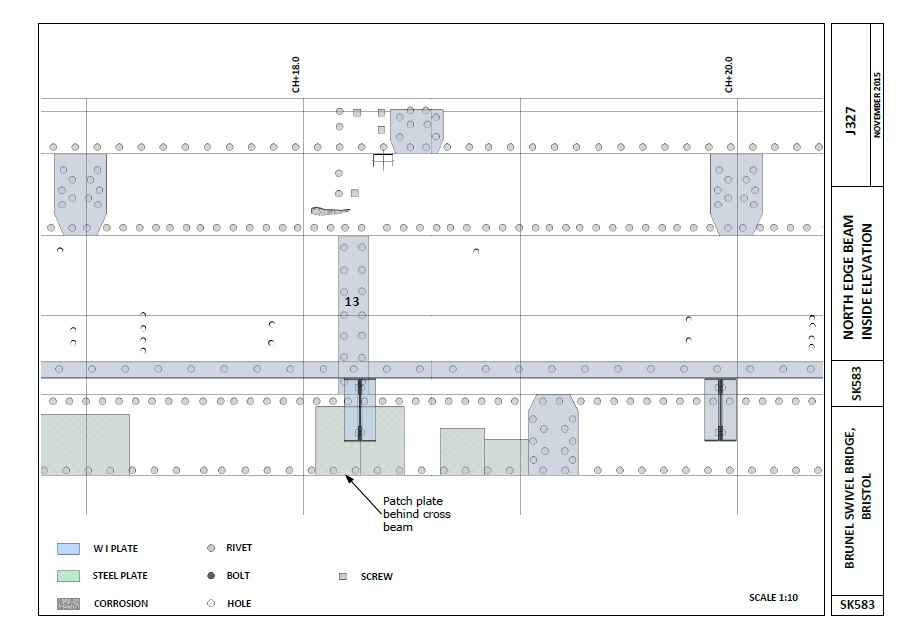

 section 12 |
 section 13 |

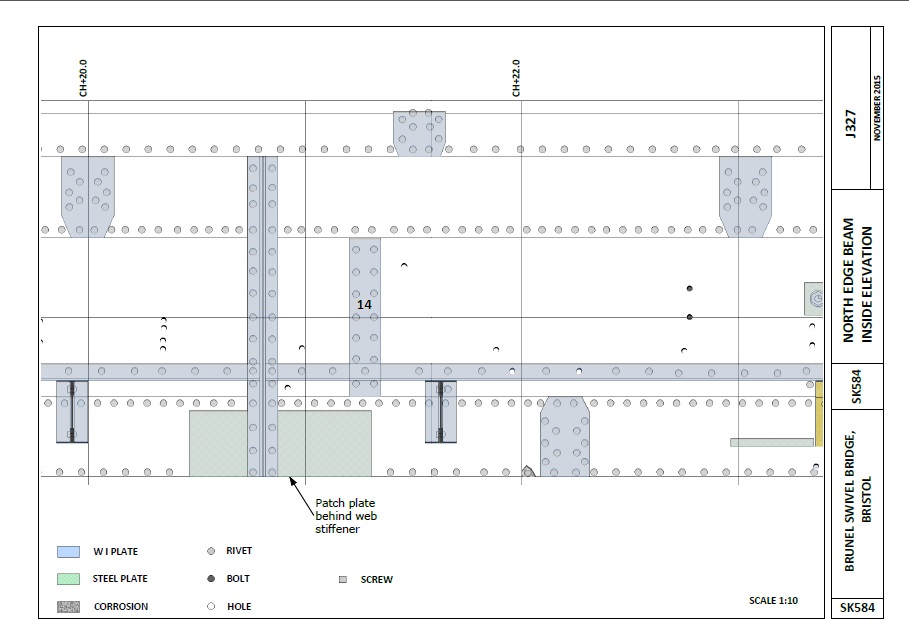

 section 14 |

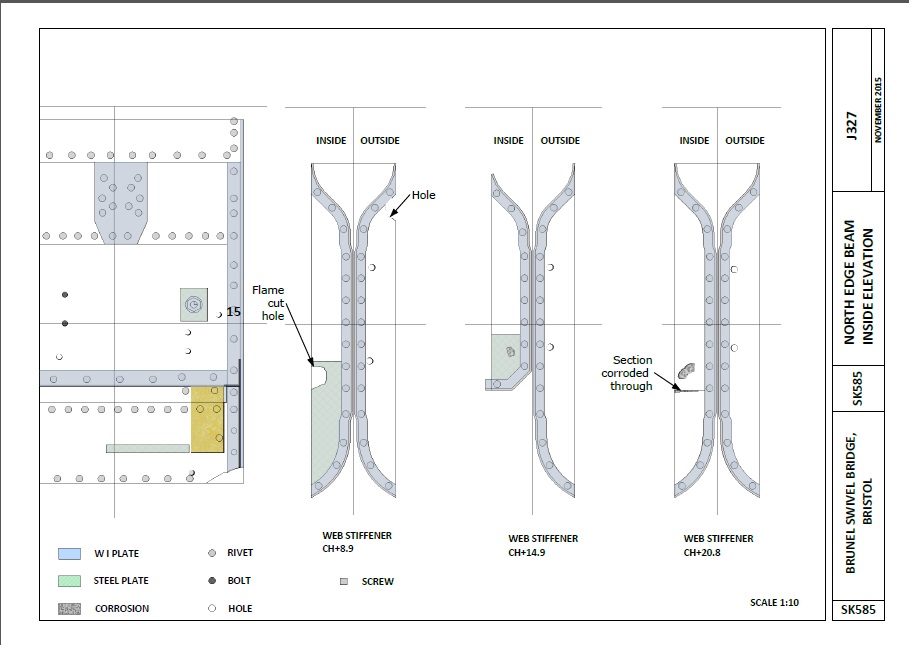

 section 15 |
