Bob Watkin's drawings of the Turning Mechanism of the Brunel Swivel Bridge

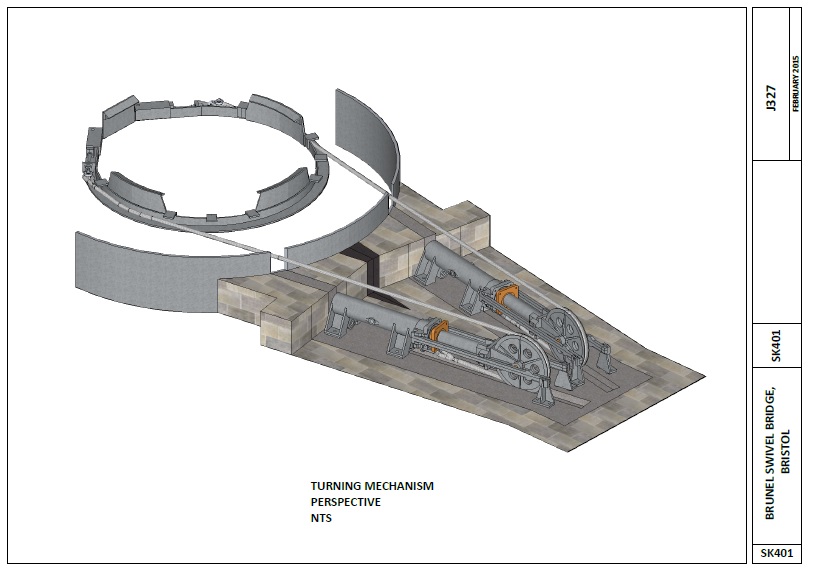

Brunel Swivel Bridge
Turning mechanism perspective

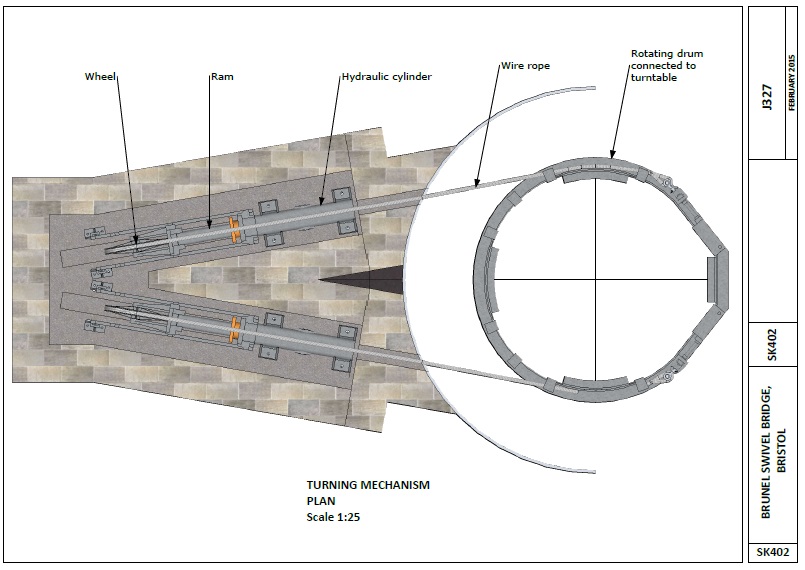

Brunel Swivel Bridge
Turning mechanism plan

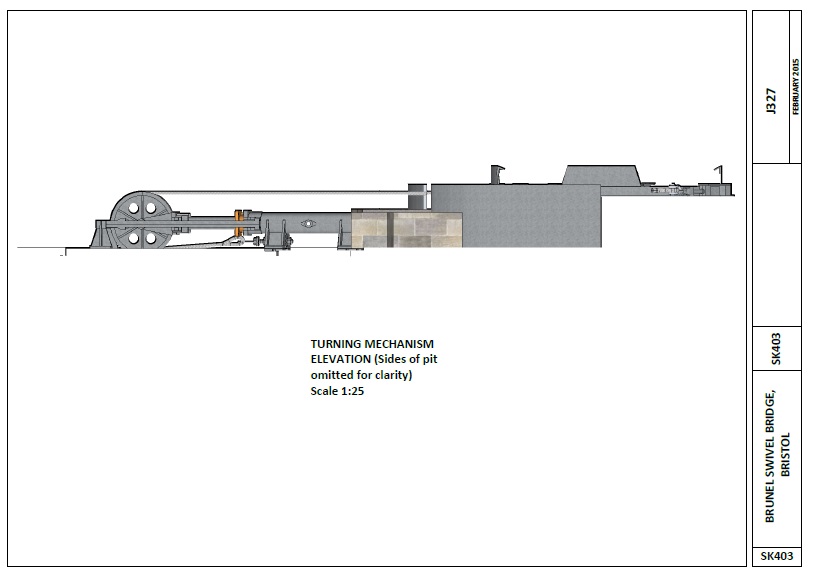

Brunel Swivel Bridge
Turning mechanism Elevation

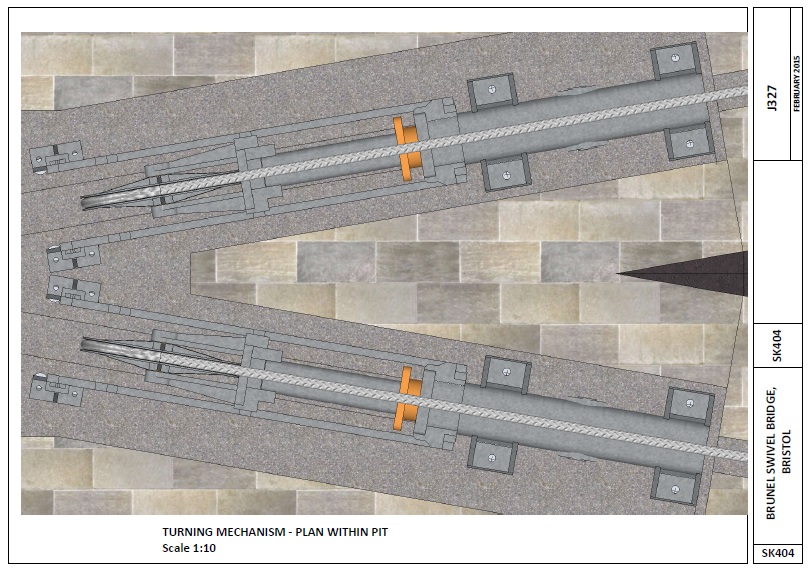

Brunel Swivel Bridge
Turning mechanism plan within pit

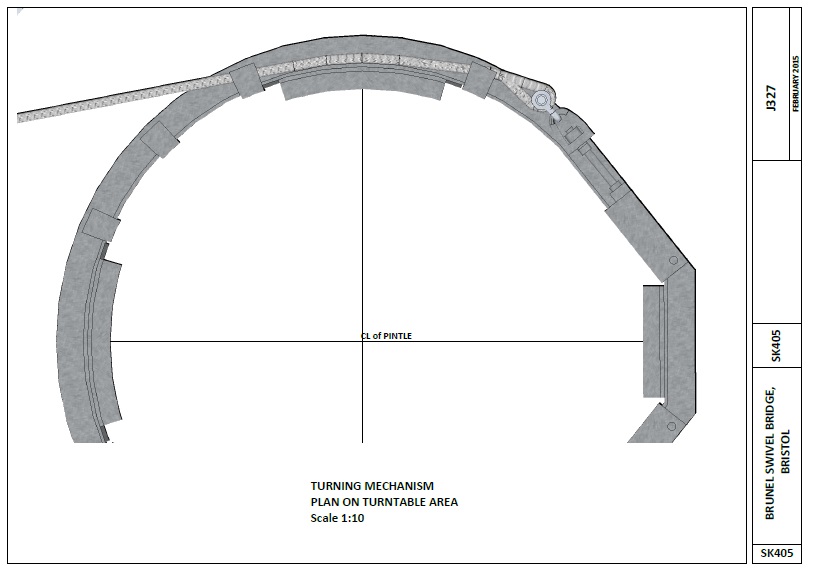

Brunel Swivel Bridge
Turning mechanism plan on turntable area

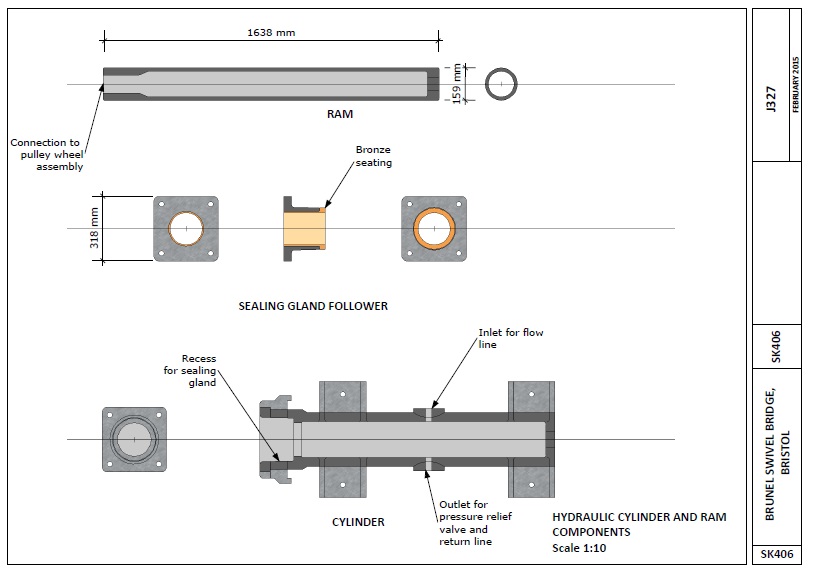

Brunel Swivel Bridge
Hydraulic Cylinder and ram components

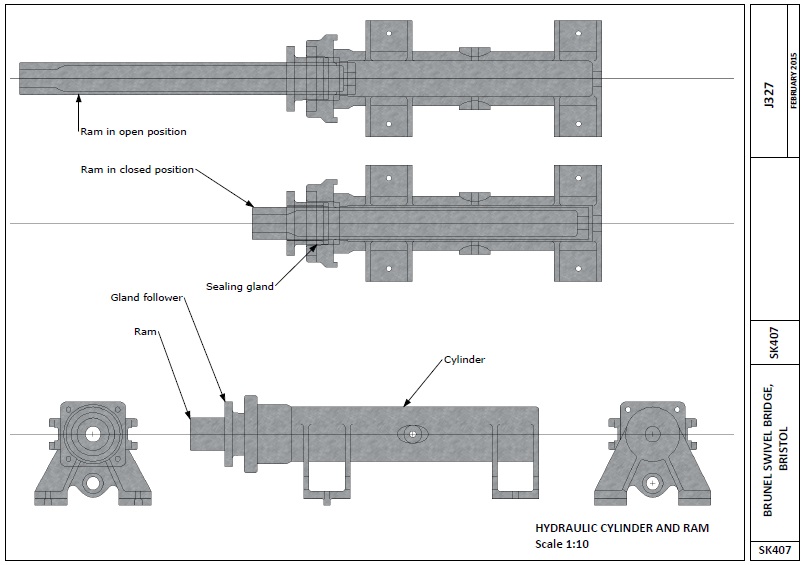

Brunel Swivel Bridge
Hydraulic Cylinder and ram
