Bob Watkin's drawings of Pintle, Turntable base and centre wheels of the Brunel Swivel Bridge

Turntable and Pintle

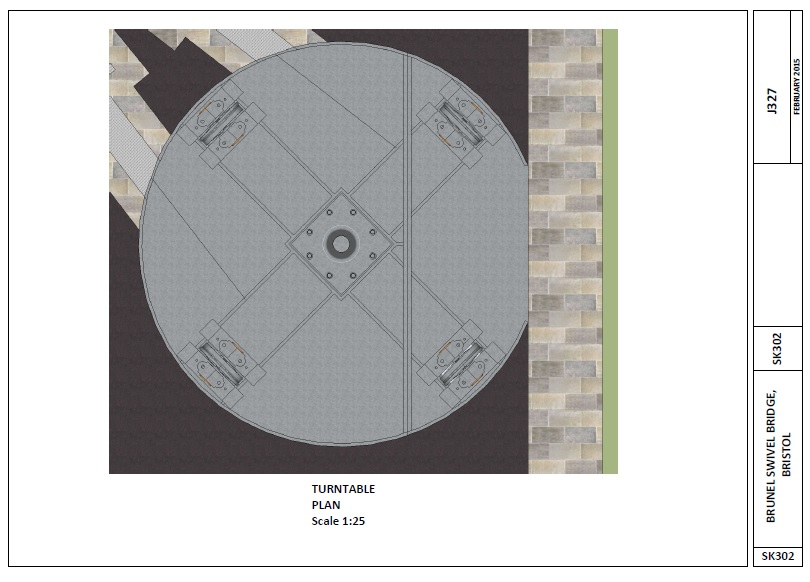

Turntable perspective	Turntable plan

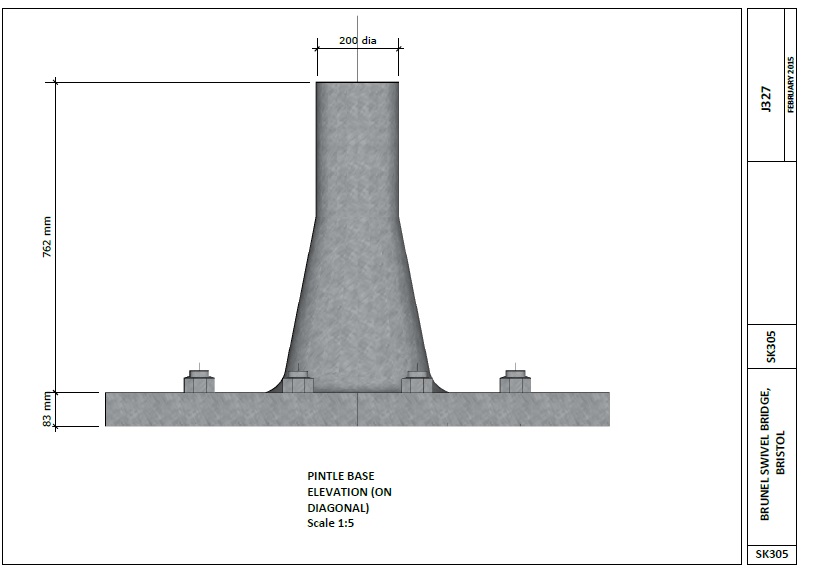

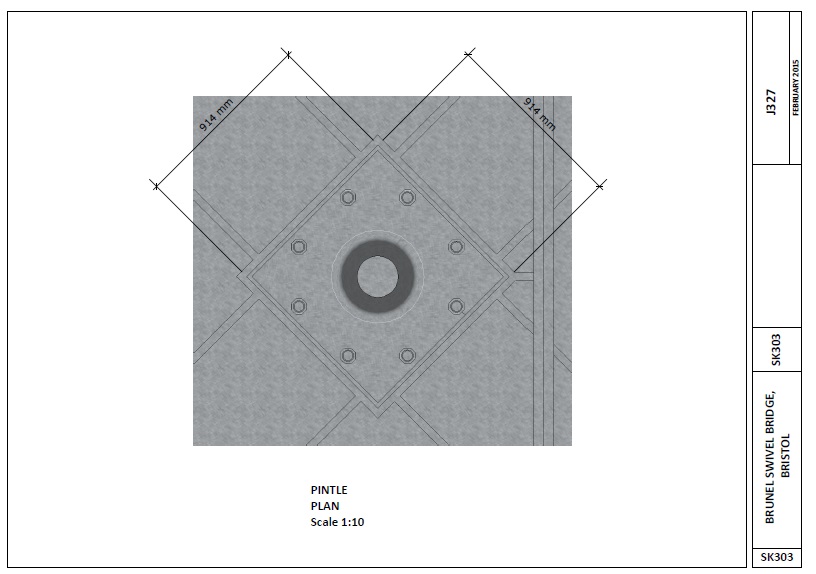

Pintle plan	Pintle base elevation (on diagonal)

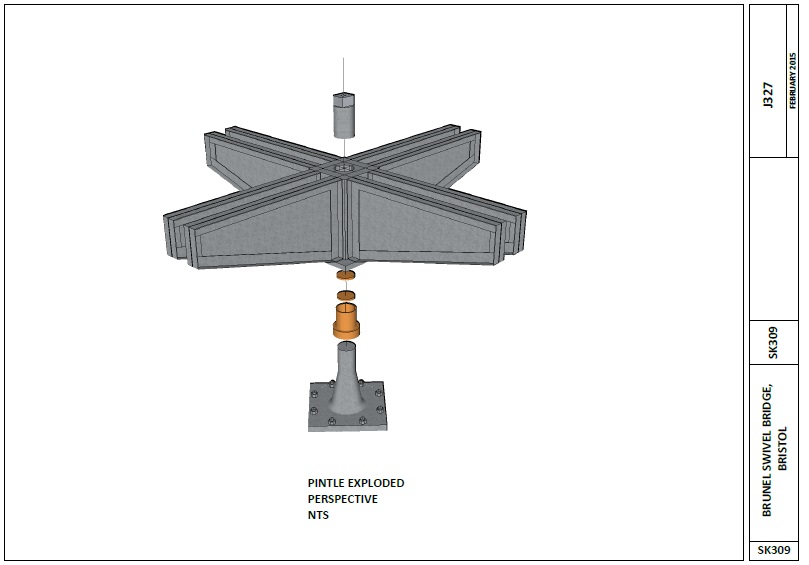

Pintle Exploded Perspective

Turntable wheel

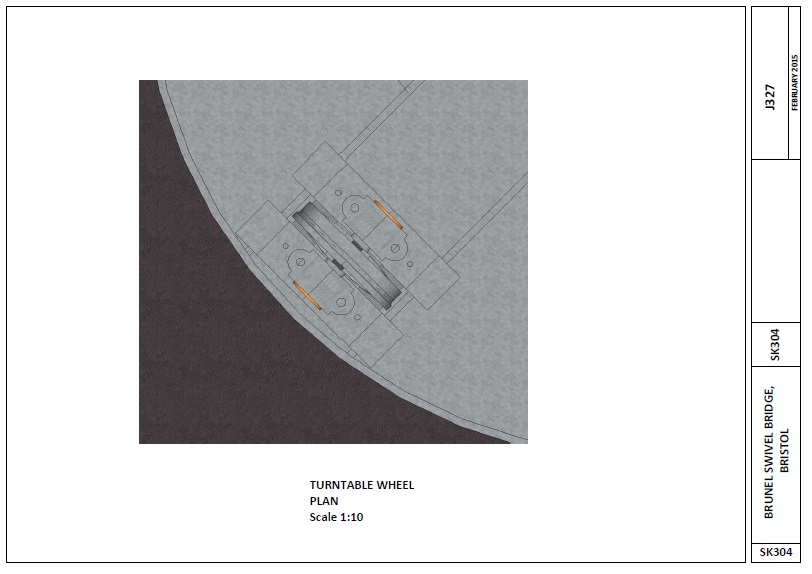

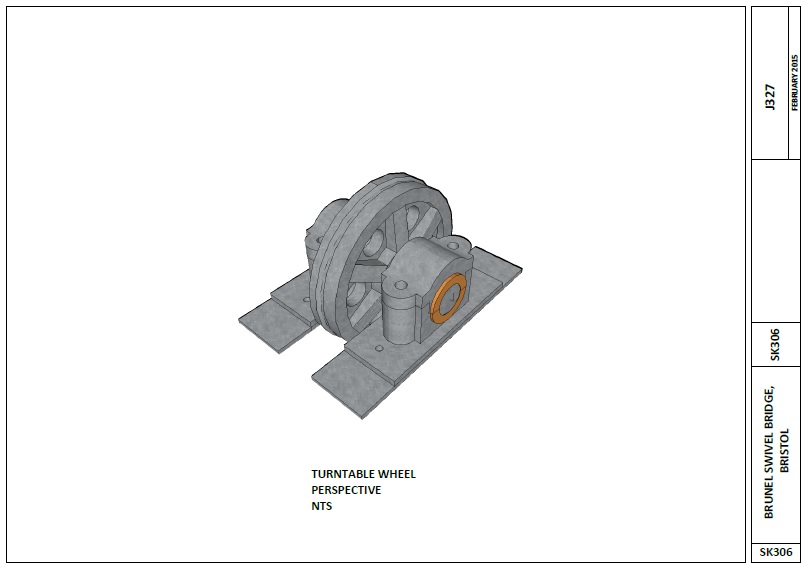

Turntable wheel plan	Turntable wheel perspective

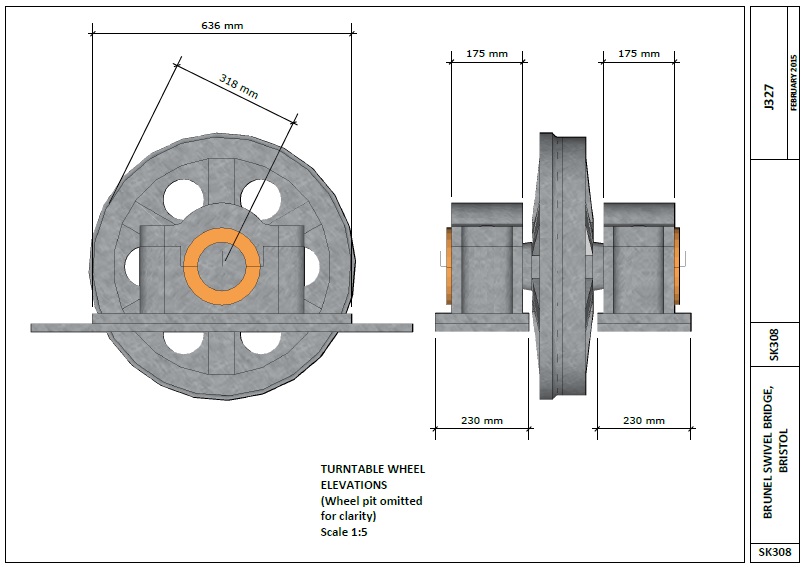

Turntable wheel plan	Turntable wheel elevation
turntable rotor wheel dimensions	turntable rotor wheel shaft dimensions
New NW Rotor Wheel Casting Scales 1:5 and 1:2	New Axle For NW Rotor Wheel Scales 1:5 and 1:2

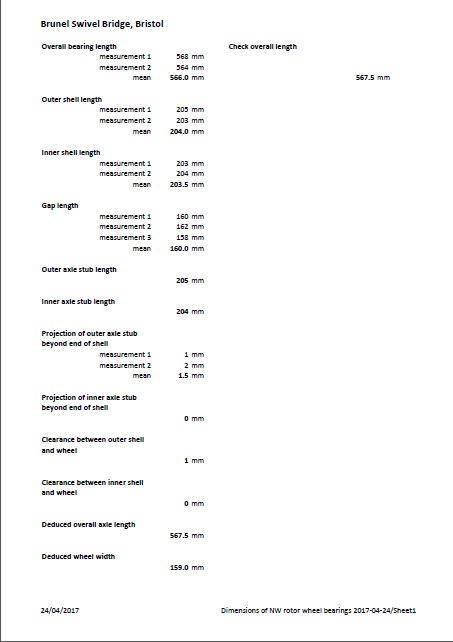

NW Wheel Assembly Scale 1:5	NW wheel dimensions

Rear wheels

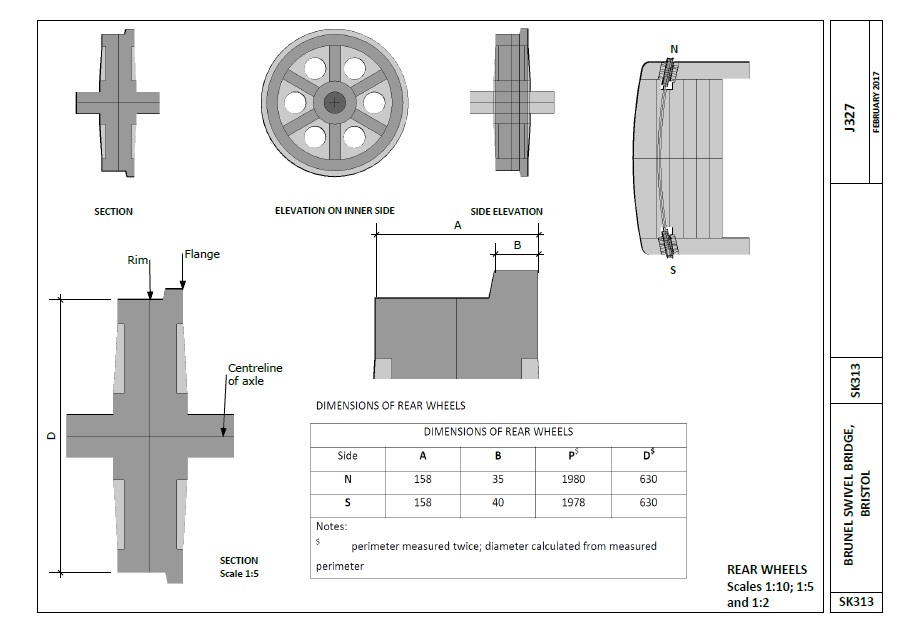

Rear wheel plan

---
