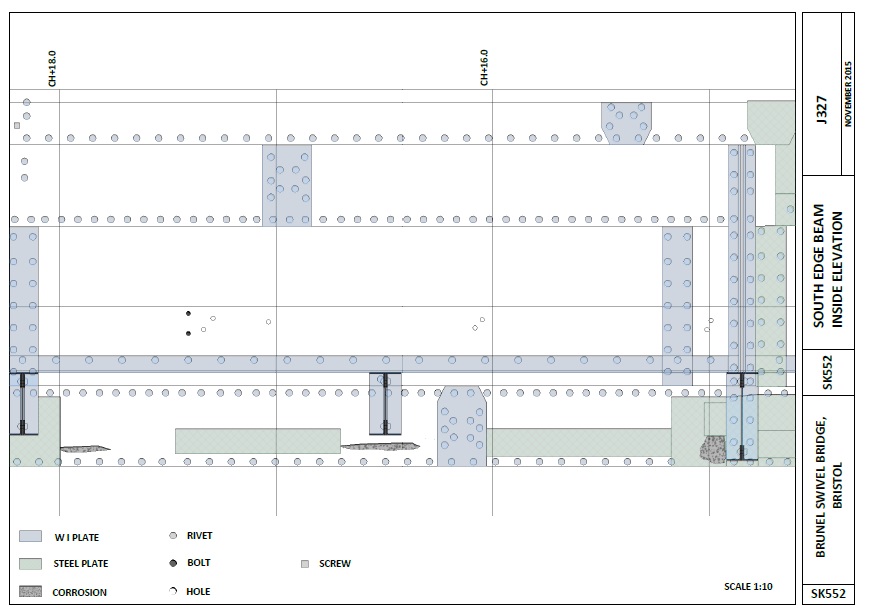

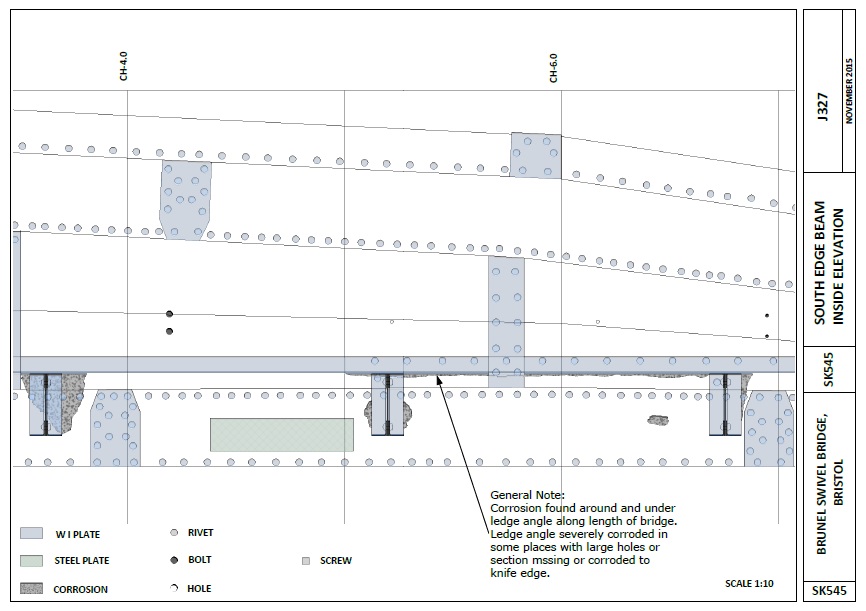

Bob Watkin's drawings of the inside edge of south Beam of the Brunel Swivel Bridge

Inspection and measurement of the south edge beams SK543-555
Brunel Swivel Bridge

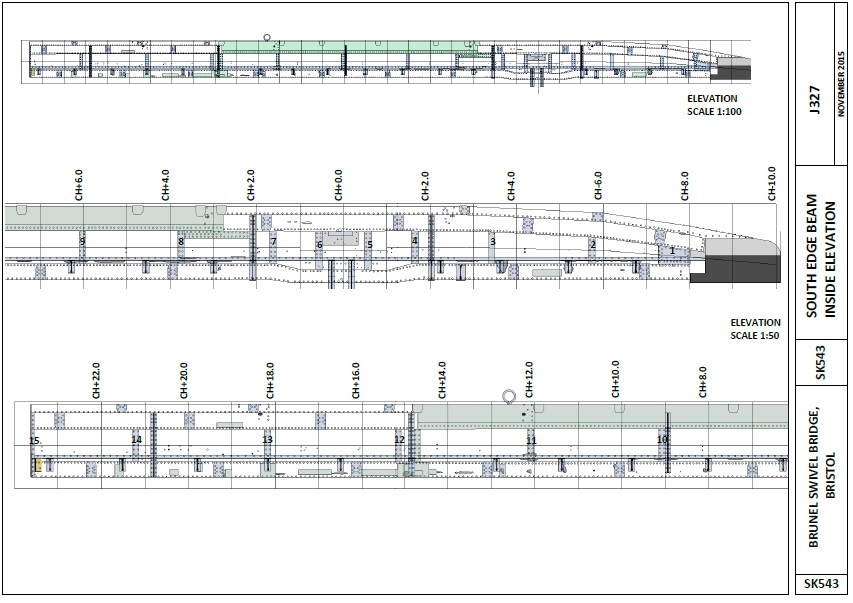

elevation 1:100, 1:50
Brunel Swivel Bridge
section 1
Brunel Swivel Bridge
section 2
Brunel Swivel Bridge
section 3 and 4
Brunel Swivel Bridge

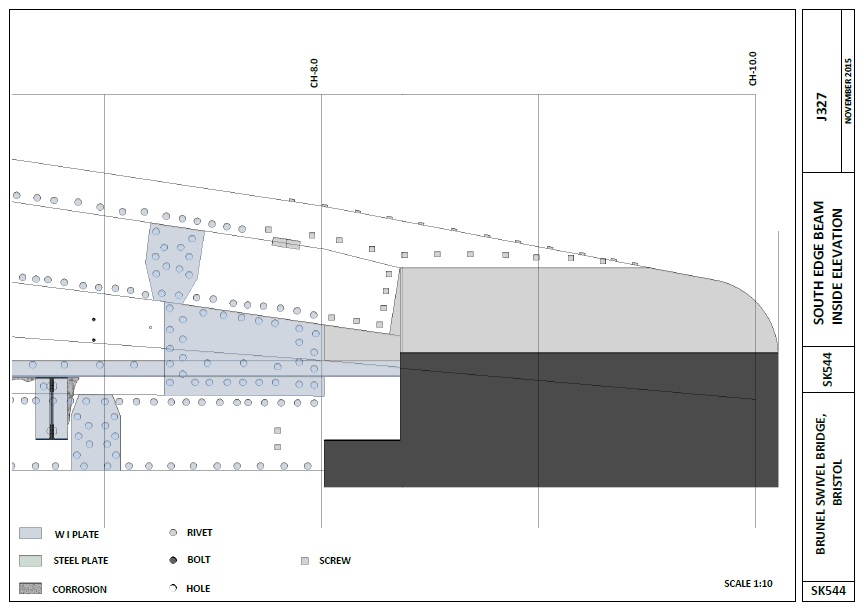

section 5 to 7
Brunel Swivel Bridge
section 8
Brunel Swivel Bridge

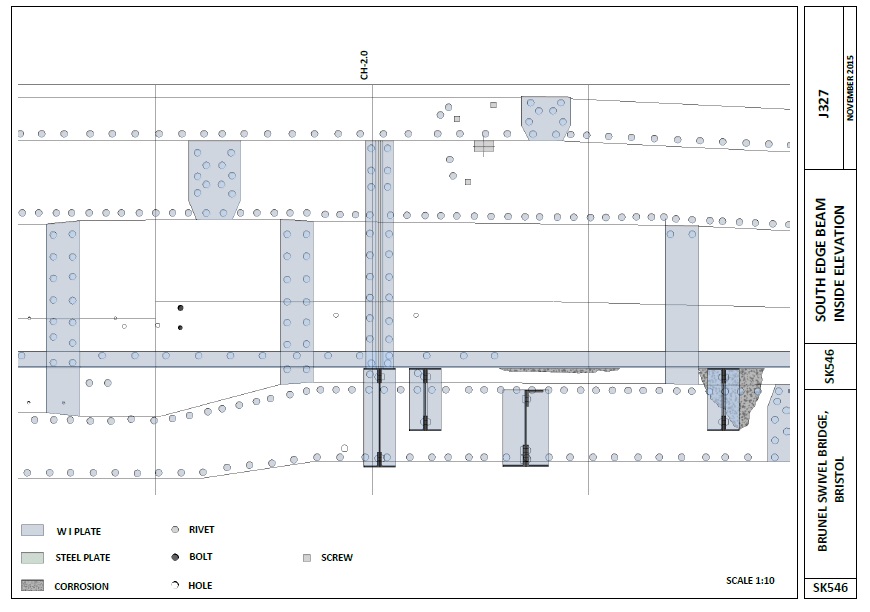

section 9
Brunel Swivel Bridge

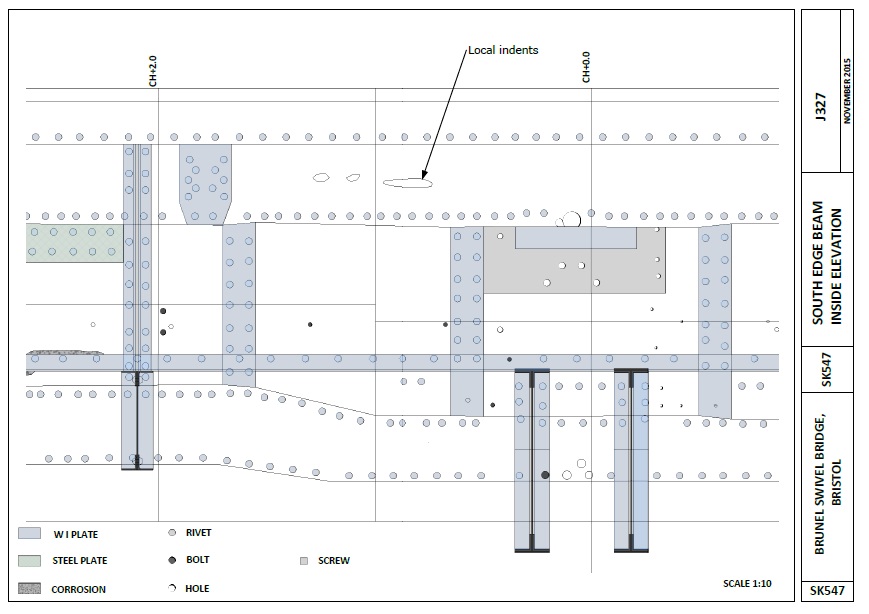

section 10
Brunel Swivel Bridge

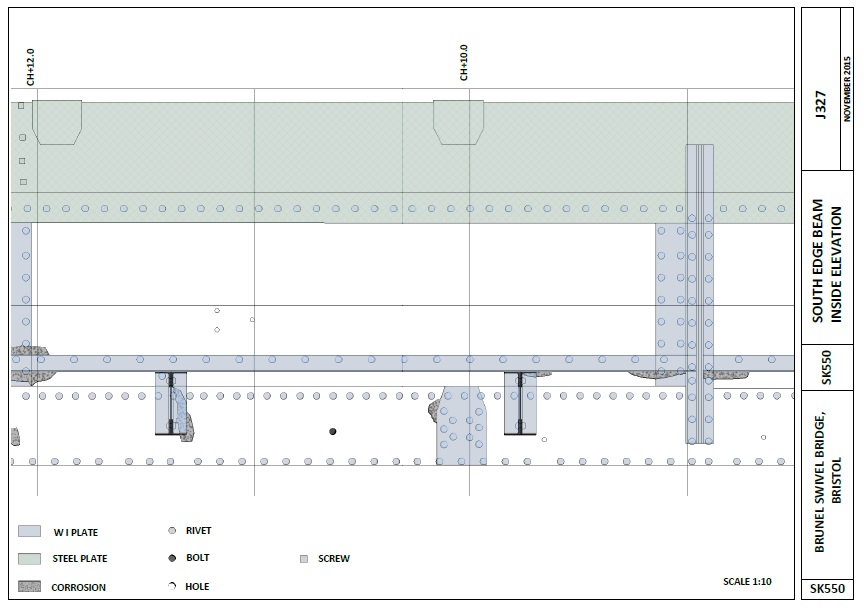

section 11
Brunel Swivel Bridge

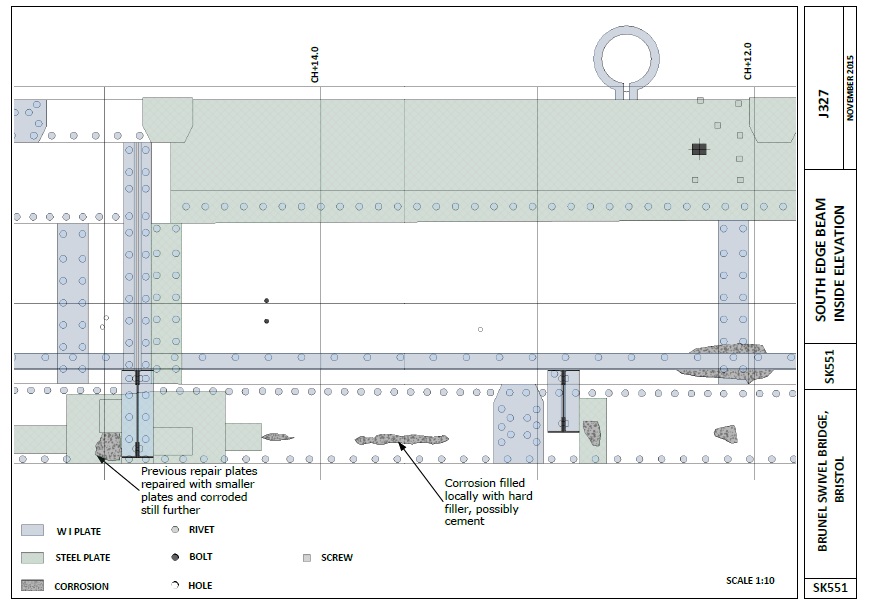

section 12
Brunel Swivel Bridge
section 13
Brunel Swivel Bridge

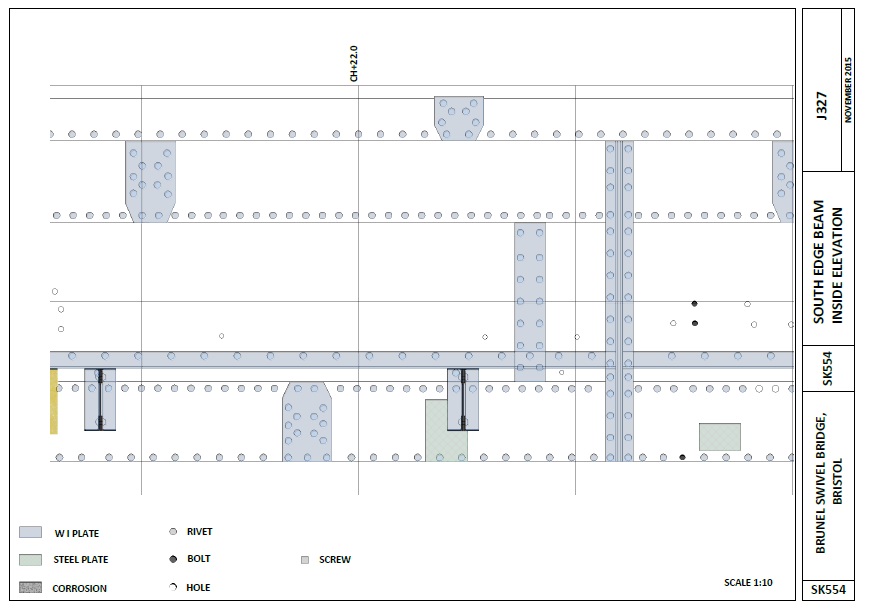

section 14
Brunel Swivel Bridge

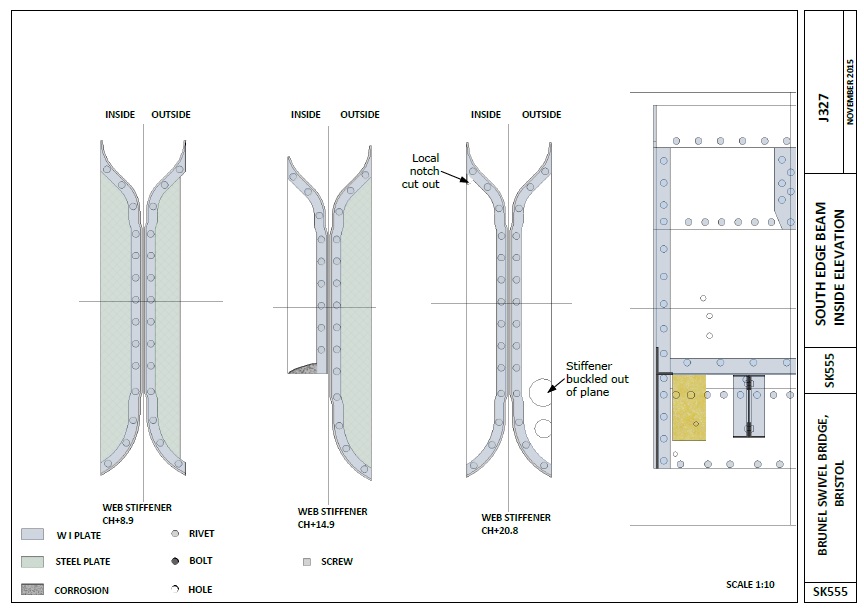

section 15
