Bob Watkin's drawings of the outside edge of South Beam of the Brunel Swivel Bridge

Inspection and measurement of the edge beams

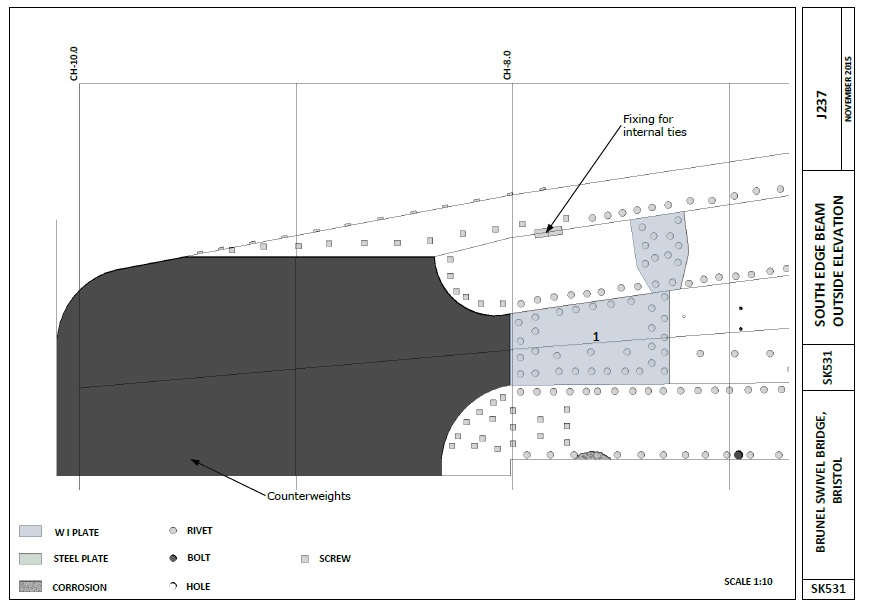

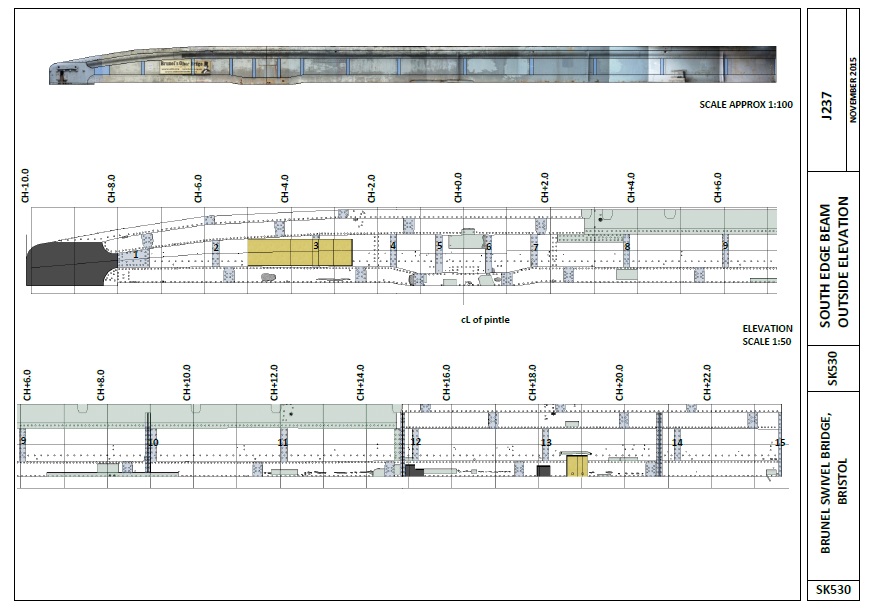

elevation	section 1

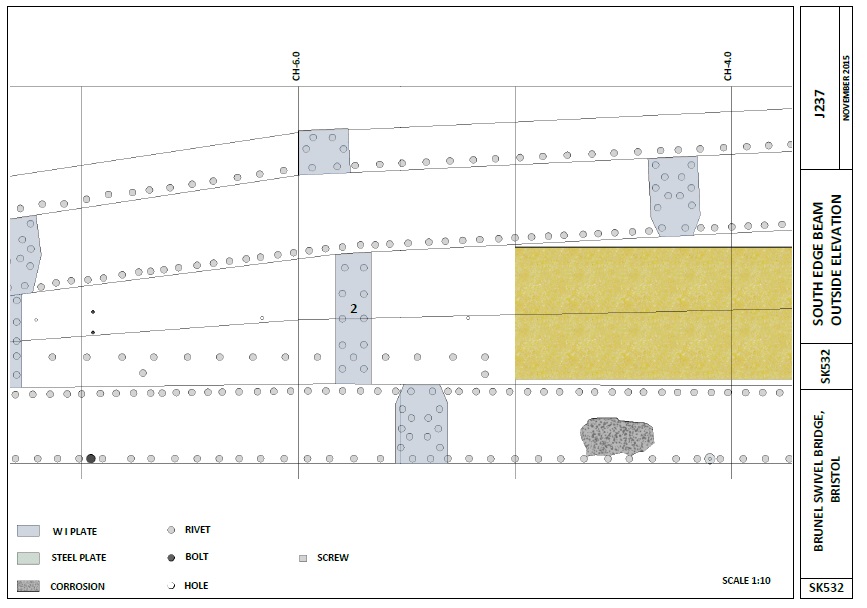

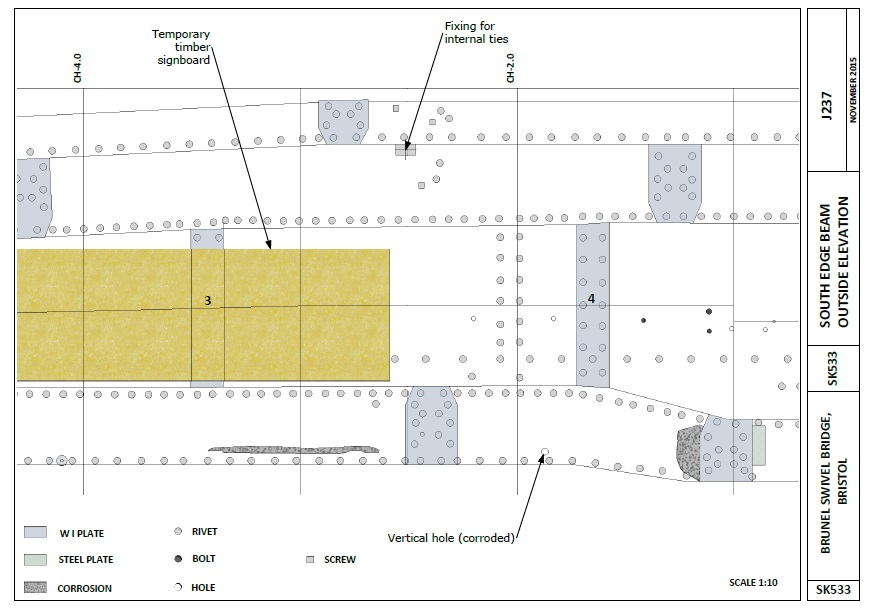

section 2	section 3 and 4

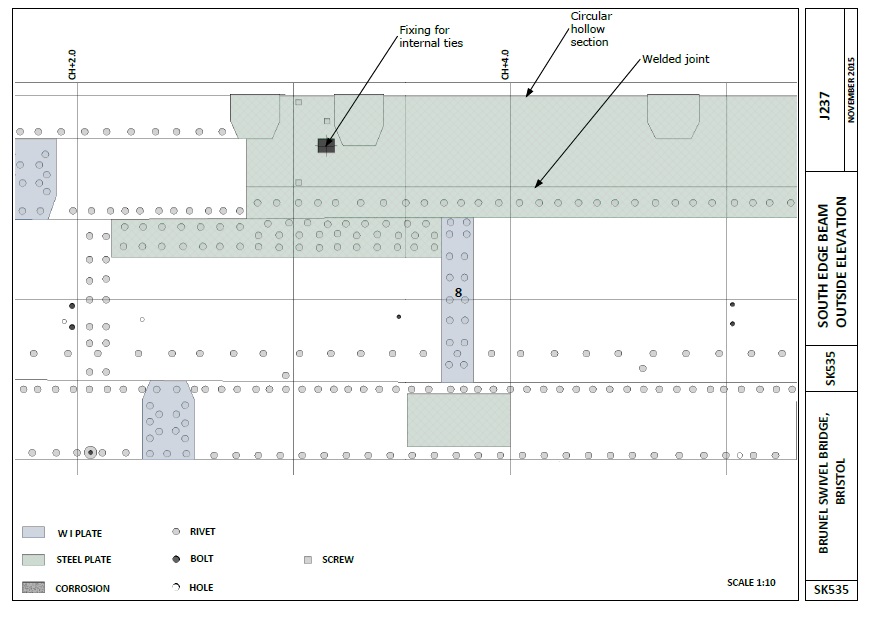

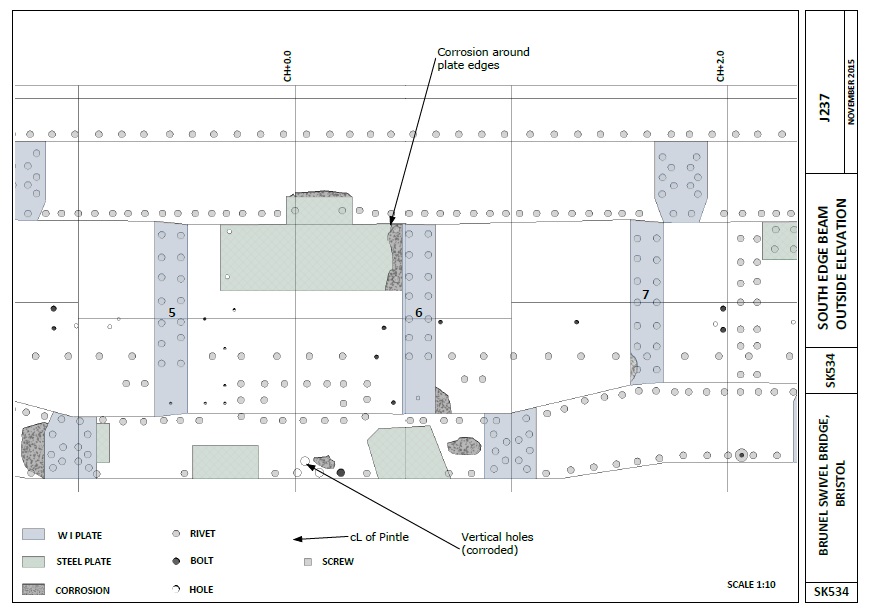

section 5 to 7	section 8

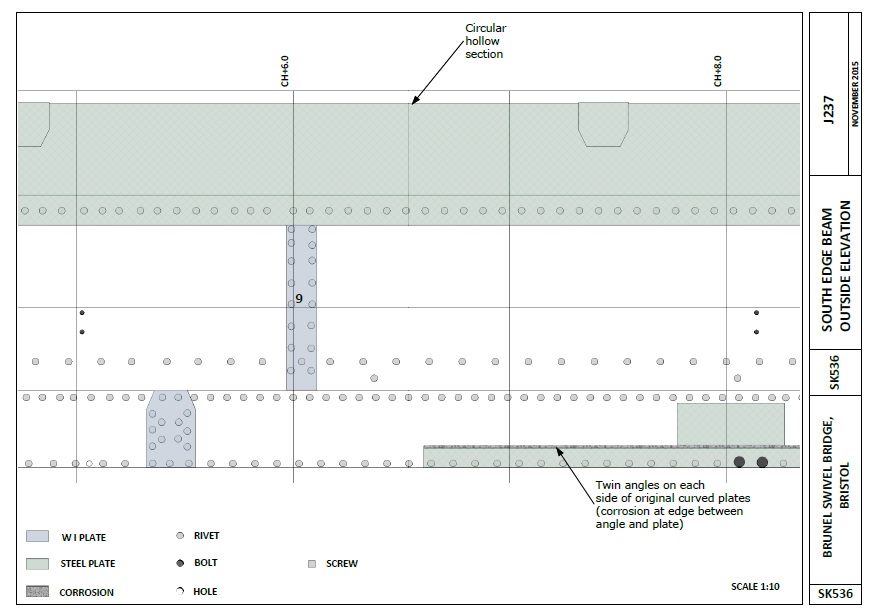

section 9	section 10

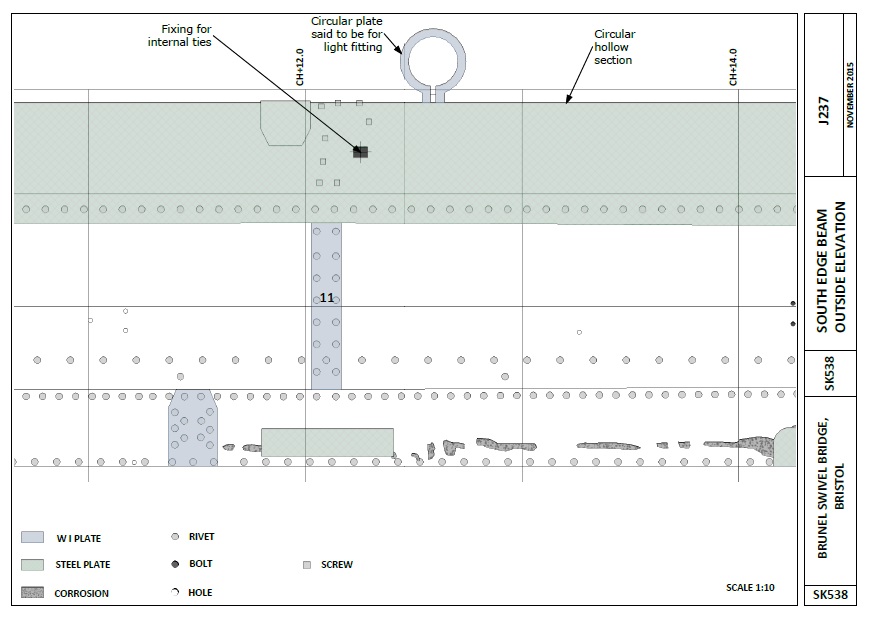

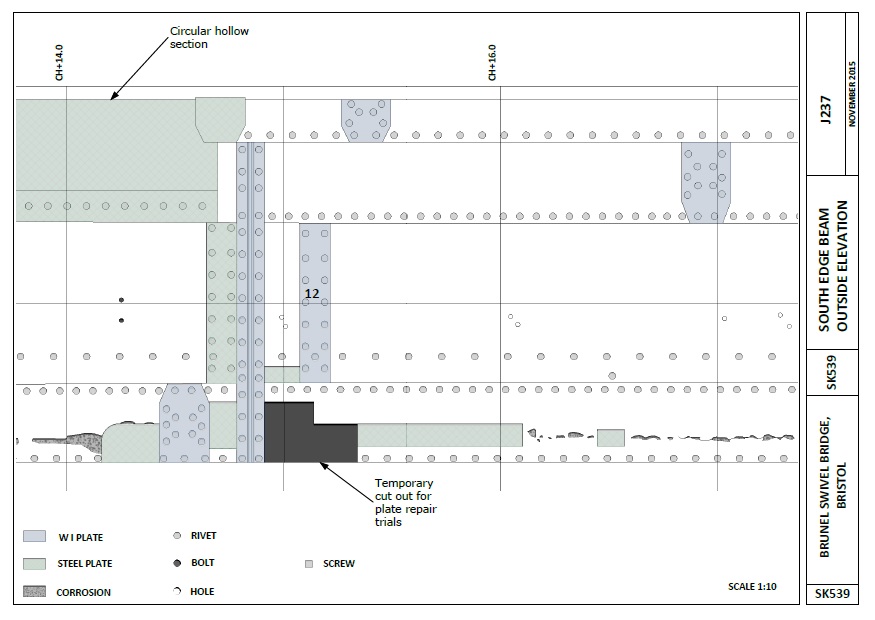

section 11	section 12

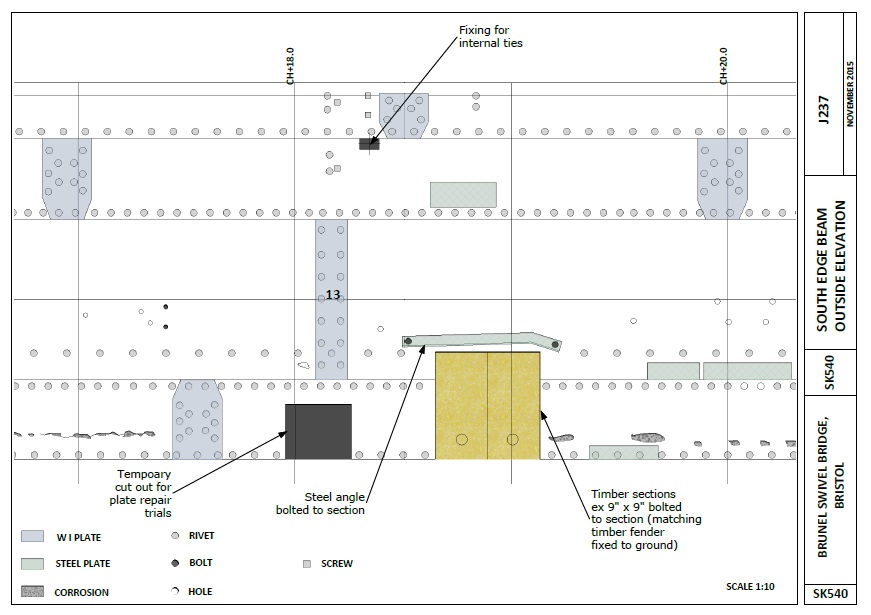

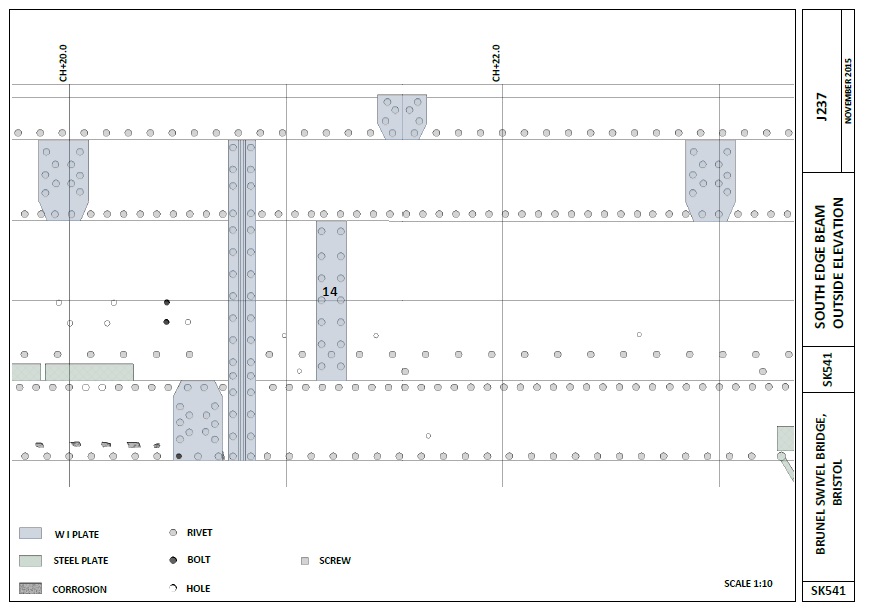

section 13	section 14

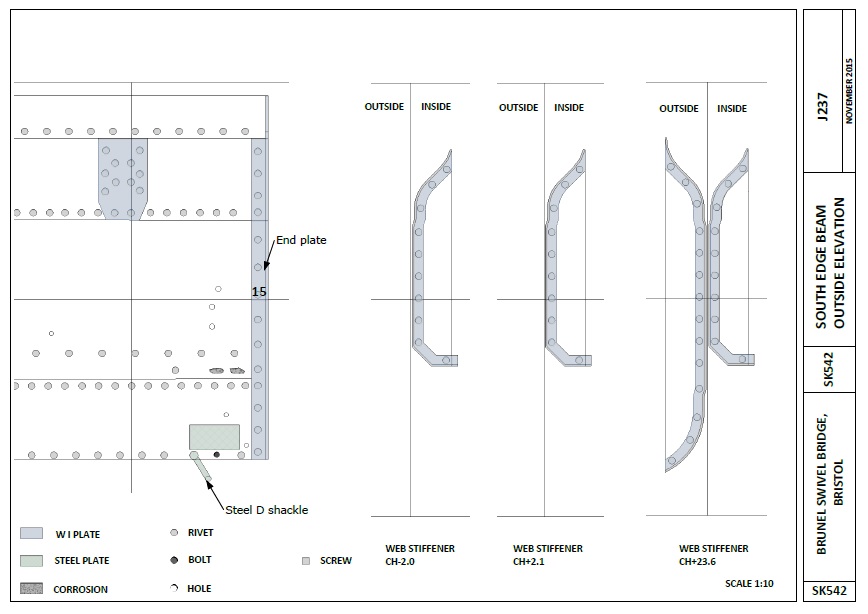

section 15

• 36 outside surface inspection photos Updated 14 November 2015
• inside surface drawing beam inspection 543-555 Updated 11 November 2015
• 30 inside surface inspection photos Updated 11 November 2015
• base surface drawing beam inspection 556-559 Updated 22 October 2015
• 19 base surface inspection photos Updated 22 October 2015

---
